Our wheel arch extensions provide sufficient wheel coverage for the following wheel sizes:

6.0 x 16 ET 43 with 215/65 R 16 All Terrain tires and a 40 mm thick spacer
8.0 x 19 ET 45 with 245/40 R 19 tires and a 40 mm thick spacer
10 x 19 ET 30 with 265/35 R 19 tires 1
0 x 20 ET 35 with 265/30 R 20 or 275/30 R 20 tires

IMPORTANT:
Before installation/bonding, the wheel clearance must be checked and adjusted if necessary! When using the following wheel/tire combinations, the rear fender must be widened by approximately 20–25 mm using a fender rolling machine in the area of ??the wheel center and 10 cm in both directions:

10 x 19 ET 30 with 265/35 R
19 10 x 20 ET 35 with 265/30 R 20 or 275/30 R 20

Depending on the lowering kit used, tire brand, and tire type, the required modifications may vary.
Therefore, any desired lowering kit must be installed before fitting the fender flares.

We generally recommend, after the paint has cured, applying transparent stone chip protection film (e.g., 3M) to areas prone to stone chips.

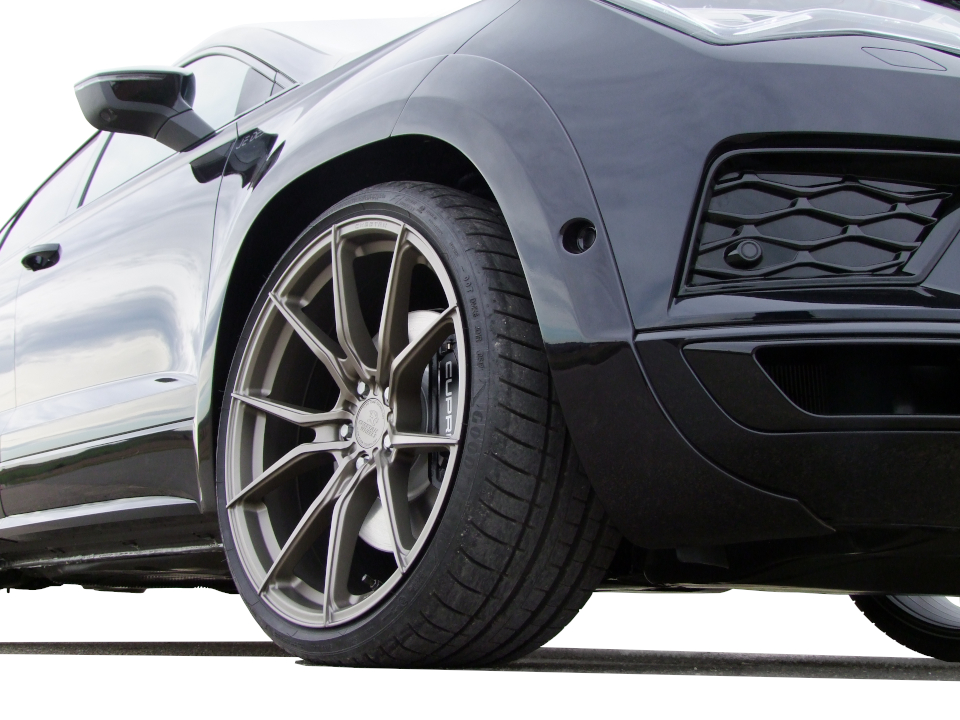

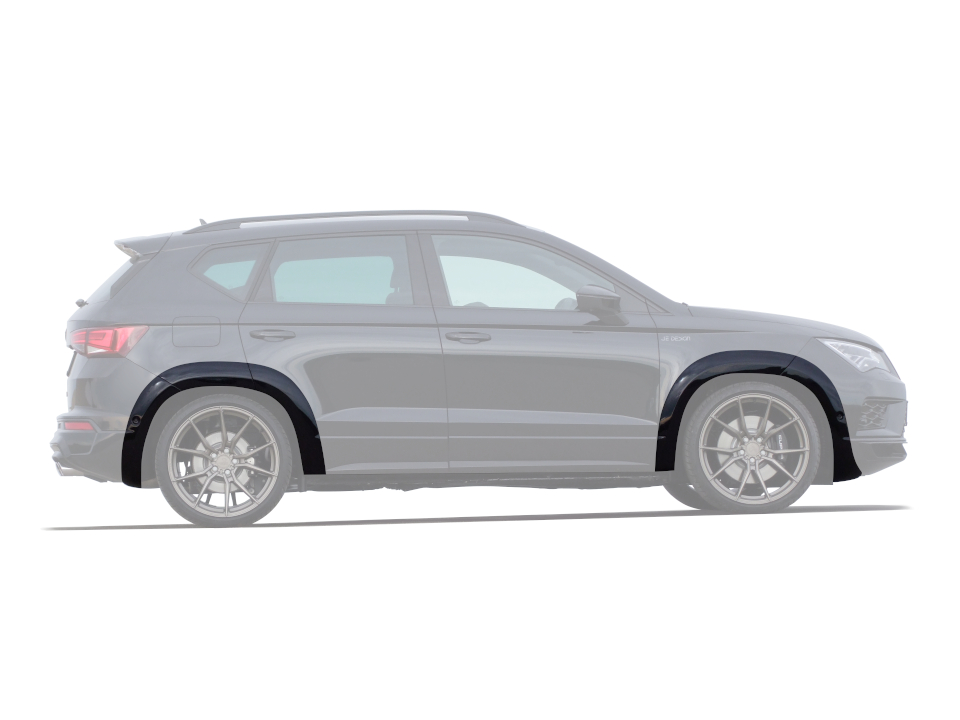

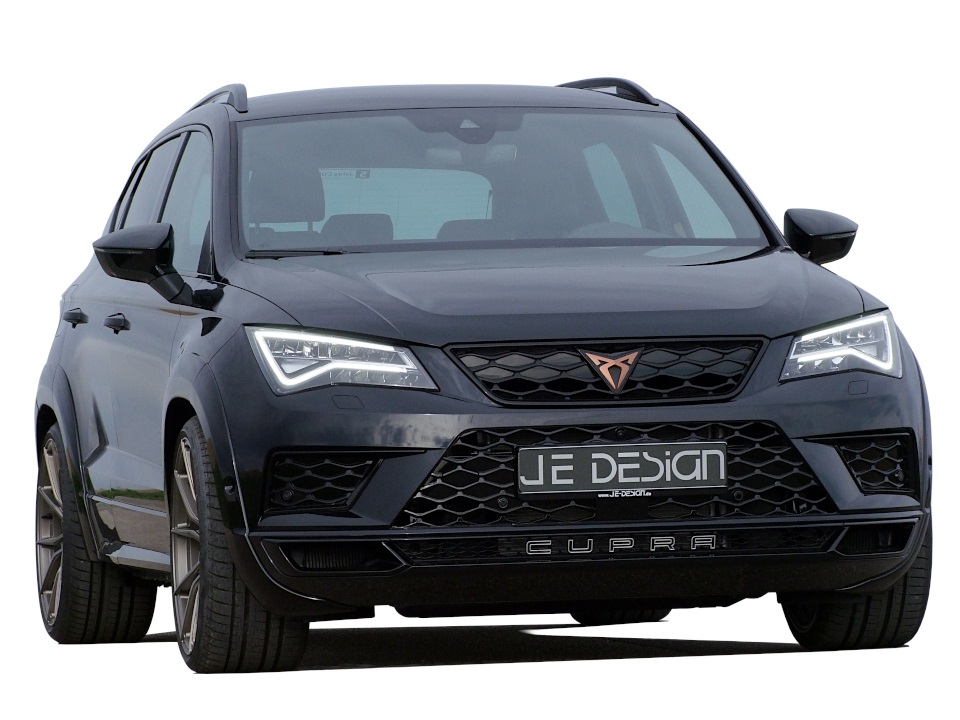

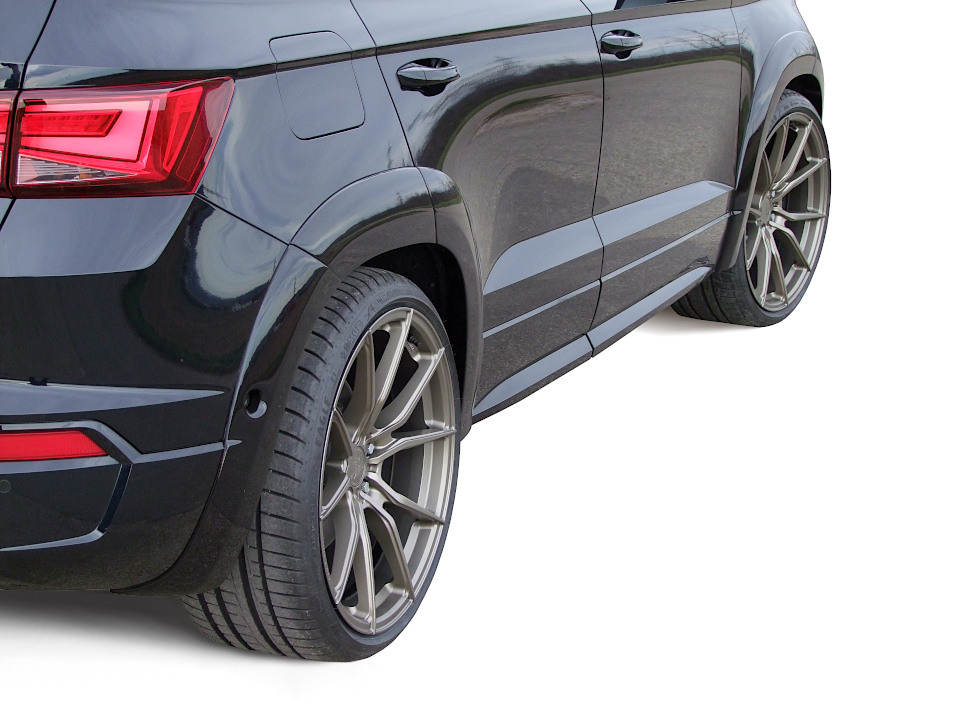

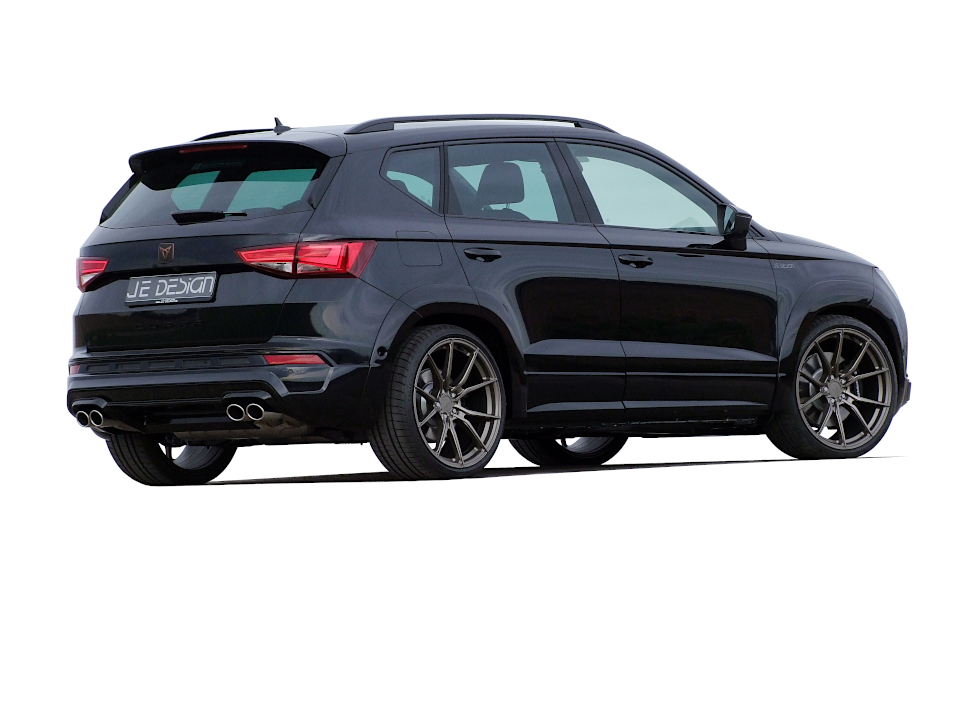

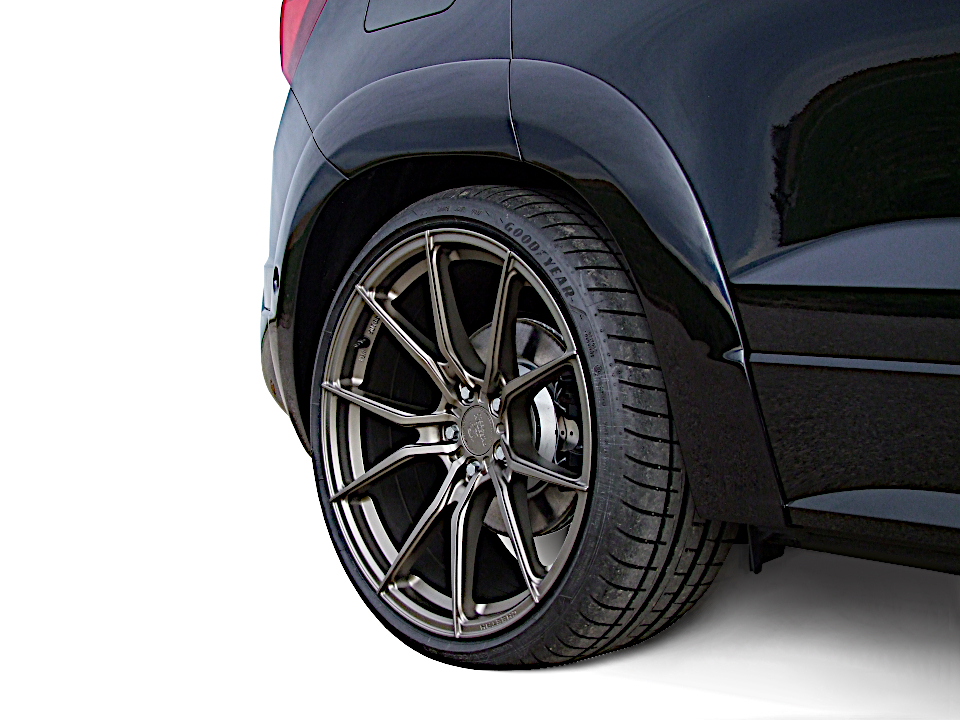

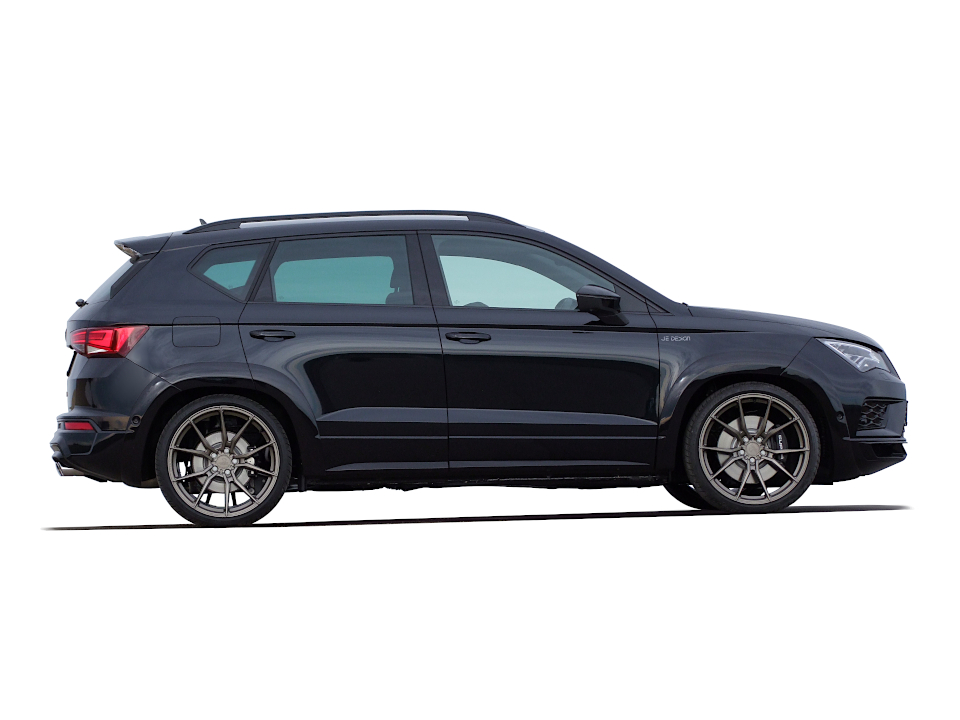

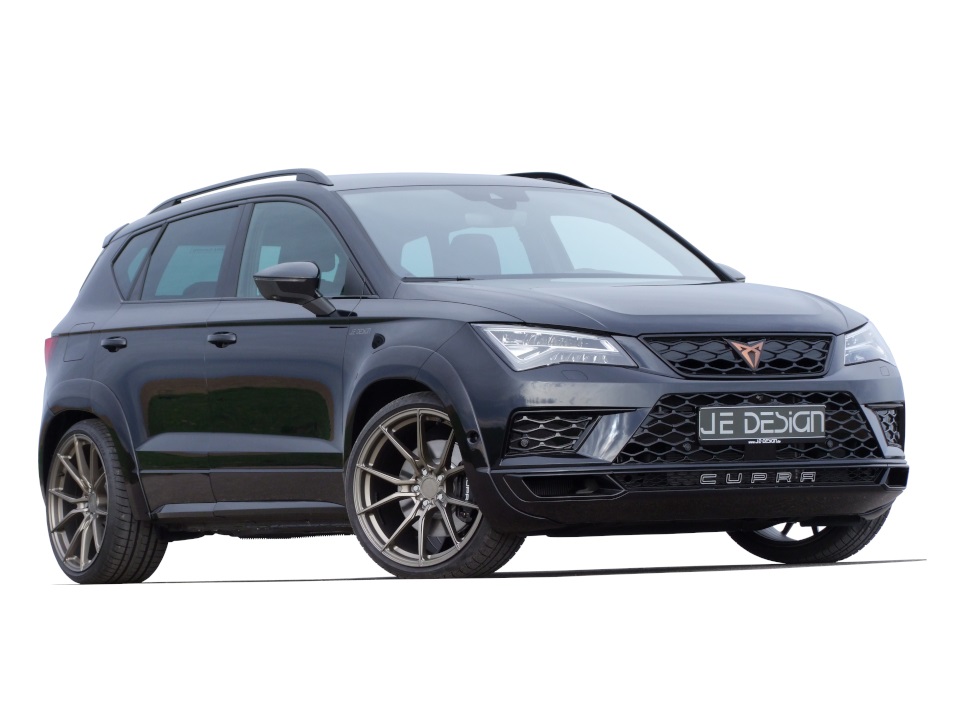

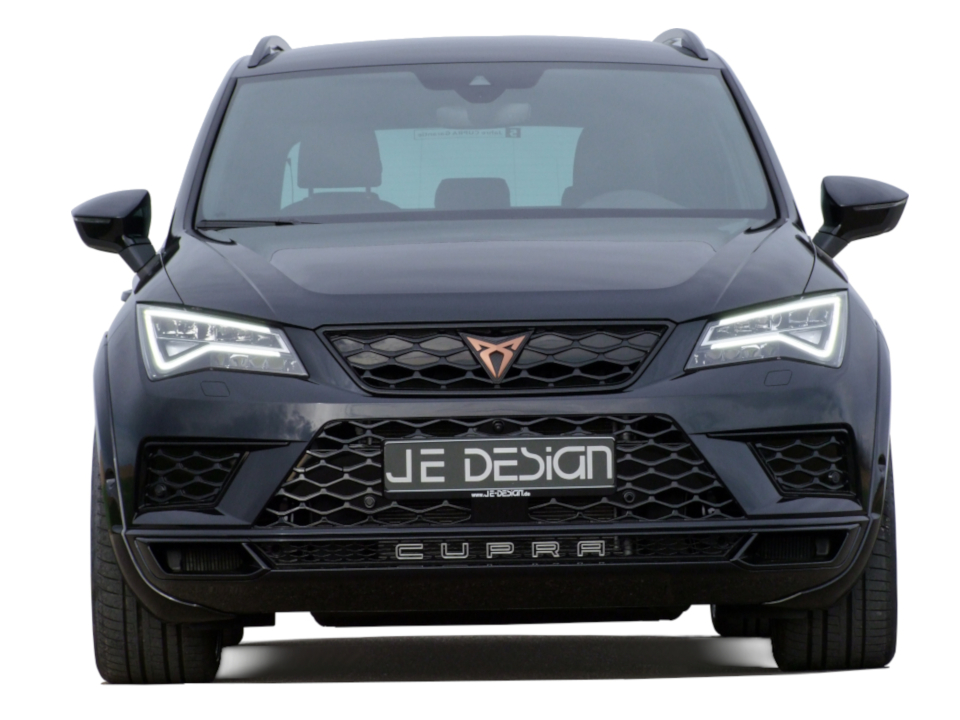

Image for illustrative purposes only. Item is unpainted!
