spacer kit 20 mm front / 34 mm rear, 112/100-5 black, incl.wheel bolts and locks ( kit 9 )
spacer kit 20 mm front / 34 mm rear, 112/100-5 black, incl.wheel bolts and locks ( kit 9 )
Item number: SV2034112557DSC
MSRP: 238,00 € incl. VAT
Included in the price 19 % VAT:
38,00 €
-
only 1 left in stock
Material | aluminium, black anodized |
Enclosed mounting accessories | see details below |
Mounting | spacers will be fixed with extended wheel bolts between wheel axle clamp and OE light alloy wheel |
Certificate | parts certificate |
TG |
Prices for Assembly at JE DESIGN workshop
Painting costs | |
Mounting costs | 0,5 h / 44,63 € incl. VAT |
Description
piercing system ( alu anodized ) consists of:
2 pcs spacers 10 mm thick front ( 20 mm / axle )
2 pcs spacers 17 mm thick rear ( 34 mm / axle )
8 pcs wheel bolt M 14 x 1.5 x 38 ball seat R13 / SW 17 ( front )
2 pcs wheel bolt locker M 14 x 1,5 x 38 ball seat R13 ( front )
8 pcs wheel bolt M 14 x 1.5 x 45 ball seat R13 / SW 17 ( rear )
2 pcs wheel bolt locker M 14 x 1,5 x 45 ball seat R13 ( rear )
1 pcs adpater SW 17 for wheel bolt locker

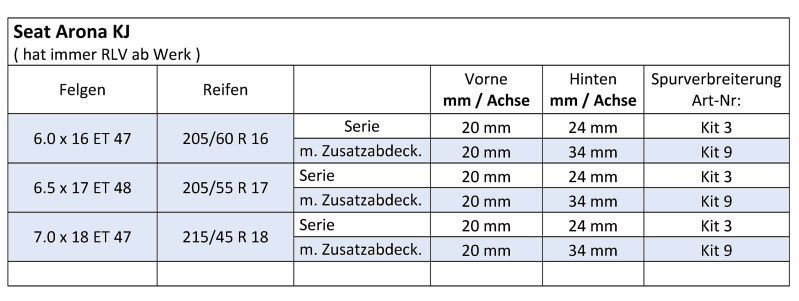

Does only fit with OE Seat aluminium wheels with 7 x 45 chamber bevel at the end of the centre bore ( check list below )
Arona KJ:( with add on wheel arche extension flaps rear )
6.0 x 16 OS 47 w. 205/60 R 16
6.5 x 17 OS 48 w. 205/55 R 17
7.0 x 18 OS 47 w. 215/45 R 18
Tarraco KN / 5FJ:
7.0 x 18 ET 43 m. 235/55 R 18
7.0 x 19 ET 43 m. 235/50 R 19
8.0 x 20 ET 41 m. 235/45 R 20
2 pcs spacers 10 mm thick front ( 20 mm / axle )
2 pcs spacers 17 mm thick rear ( 34 mm / axle )
8 pcs wheel bolt M 14 x 1.5 x 38 ball seat R13 / SW 17 ( front )
2 pcs wheel bolt locker M 14 x 1,5 x 38 ball seat R13 ( front )
8 pcs wheel bolt M 14 x 1.5 x 45 ball seat R13 / SW 17 ( rear )
2 pcs wheel bolt locker M 14 x 1,5 x 45 ball seat R13 ( rear )
1 pcs adpater SW 17 for wheel bolt locker
Does only fit with OE Seat aluminium wheels with 7 x 45 chamber bevel at the end of the centre bore ( check list below )
Arona KJ:( with add on wheel arche extension flaps rear )
6.0 x 16 OS 47 w. 205/60 R 16
6.5 x 17 OS 48 w. 205/55 R 17
7.0 x 18 OS 47 w. 215/45 R 18
Tarraco KN / 5FJ:
7.0 x 18 ET 43 m. 235/55 R 18
7.0 x 19 ET 43 m. 235/50 R 19
8.0 x 20 ET 41 m. 235/45 R 20
