JE DESIGN flap exhaust syst. Seat Leon 5F Cupra ST with EG-proofed,4 x 80 mm, for OE rear valance
JE DESIGN flap exhaust syst. Seat Leon 5F Cupra ST with EG-proofed,4 x 80 mm, for OE rear valance
Item number: JE5FAKL480CUST4WD
MSRP: 2737,00 € incl. VAT
Included in the price 19 % VAT:
437,00 €
-
currently out of stock
Material | high-grade steel |
Enclosed mounting accessories | clamps |
Mounting | original exhaust system will be replaced through JE DESIGN exhaust control valve system |
Certificate | EC approval |
EGG |
Prices for Assembly at JE DESIGN workshop
Painting costs | none |
Mounting costs | 3,5 h / 312,38 € incl. VAT |
Description
Does only fit for cars with 4 WD with engine Code CJXC 221 KW and 265 KW ( ABT )
Not for Cupra300ST Carbon- Edition, Cupra 370 ST ( CH )
.

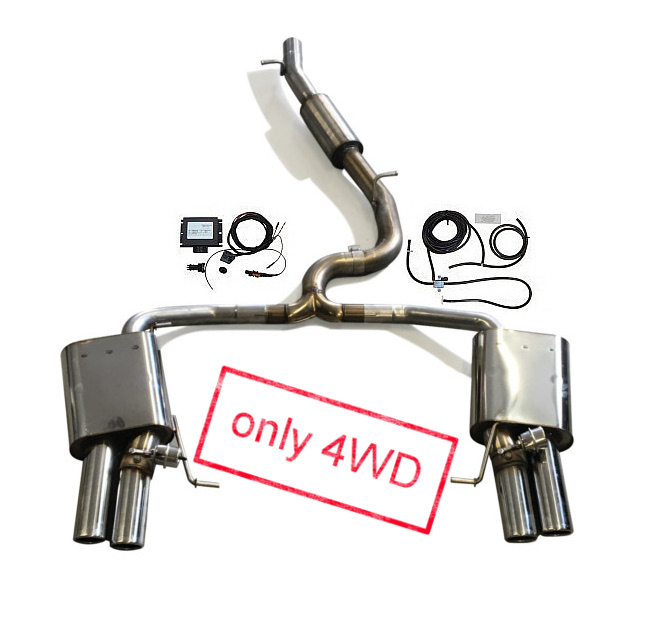

consists of:
- JE DESIGN first silencer / high-grade steel
- JE DESIGN Y-connection pipe between first and rear silencer / high-grade steel

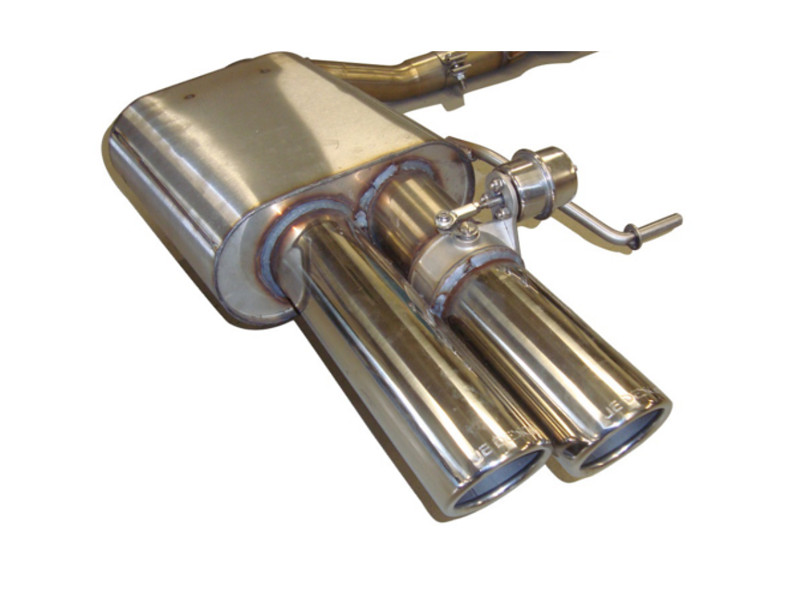

- JE DESIGN rear silencer left with flap and double exhaust pipe 80 mm / high-grade steel
- JE DESIGN rear silencer right with flap and double exhaust pipe 80 mm / high-grade steel
- JE DESIGN Can electronic module for valve control e1 03 5658
- wire set with plug, and 5 Ampere
- elastic tube, electronic magnetic valve ( Version Cupra ST )
- care product PTFE/Ceramic-oil Multispray Teflux ( 150 ml )
diameter OE pipe 65 mm / JE DESIGN pipe 70 mm
incl. EG-certificate, mounting instruction
Operation via driving profile selection "SEAT Drive Profile"
( Normal,Sport, Cupra ) at Touchscreen
NORMAL / SPORT : exhaust quiet ( exhaust valve / flap closed )
CUPRA : exhaust loud ( exhaust valve / flap open, min. speed 1 km/h )
.
WATCH OUT !!! IMPORTANT CARE INSTRUCTIONS:
The exhaust flap is a mobile part that is exposed to weather influences (rain, salt, etc.) and therefore requires regular maintenance (at least twice a year and before start-up) to avoid sticking. We recommend a ceramic paste, or a ceramic spray, e.g. From manufacturer Normfest the multispray (PTFE / ceramic oil spray) "Teflux". The user description must be observed.
*******************************************************************
CURRENT PRICE IS VALID WHILE STOCKS LAST !!
Price will be change from 1st January 2019 !
*******************************************************************
